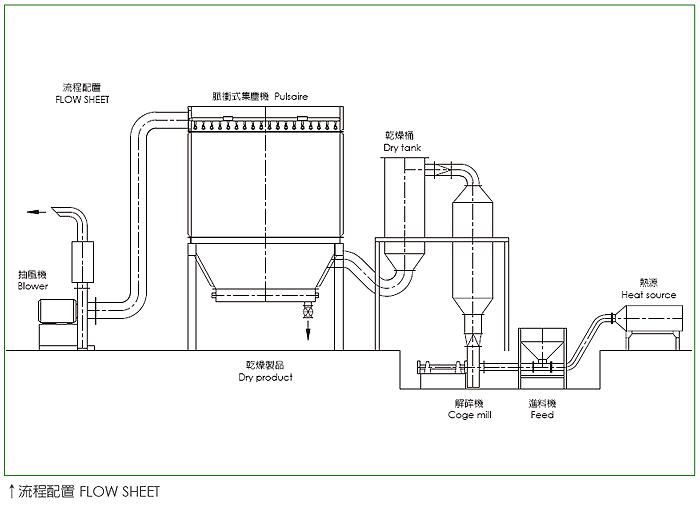

This is a device to dry wet materials instantly by feeding them into the hot air to collide with it and forwarding them in the state of floating.
It is especially suitable for all dry up powdery and granule materials except the viscid materials.

• The drying speed of materials is so high(2-5 seconds from feeding until drying), and it is used to dry materials sensitive to heat with no trouble
• As the facility for rough and fine crushing is provided for processing, it solves the problems in drying and crushing at the same time
• The space for installation is much smaller than others and it can be installed vertically and it is very convenient
• As the drying processes are connected with ducts it’s easy to handle without any loss such as escaping.
• As the hot air contact area at time of drying is large. It has a high heat efficiency without being subject to heat conduction resistance more than required
• The personal expenditure for the drying machine can be saved to the minimum irrelevant to the amount of production
